Steel & aluminum composite panels · Made in the USA

Panels built for
the demands of the road

Steel composite panels for daily abuse. Lightweight aluminum composite options with added rigidity. Built around your equipment.
Request samples & product information →
SCM / Steel composite ↓ACM / Aluminum composite ↓

Why Tekmodo

Panel performance
built around your equipment

Your panel supplier should understand both the product you build and the way you build it. Tekmodo brings metal composite manufacturing, material processing and technical support together to help you move from panel requirements to production.

01 / Direct access

Work directly
with your manufacturer

Work with the team making your panels. Review requirements, evaluate samples and coordinate production needs directly with Tekmodo.

02 / Application fit

Your equipment,
your configuration

Match panel construction, dimensions and finish to your equipment. Work with Tekmodo on the balance of durability, weight, appearance and assembly your application requires.

03 / Manufacturing support

More than
a panel order

Bring your drawings, current materials or next product idea. Our extrusion, lamination, metal processing and in-house testing capabilities support material evaluation and OEM product development.

Product families

Steel & aluminum composite materials

SCM

Steel composite material

Built to withstand
daily abuse

Tekmodo SCM combines pre-painted, galvanized steel skins with HDPE or proprietary core options for demanding transportation applications. Contact our team to review the construction for your equipment.

Key benefits

  • Damage resistance for frequent loading and handling
  • Pre-painted, galvanized steel skins for corrosion protection
  • Moisture-resistant core
  • Rigid composite construction
  • Finished surfaces that are easy to clean

Applications

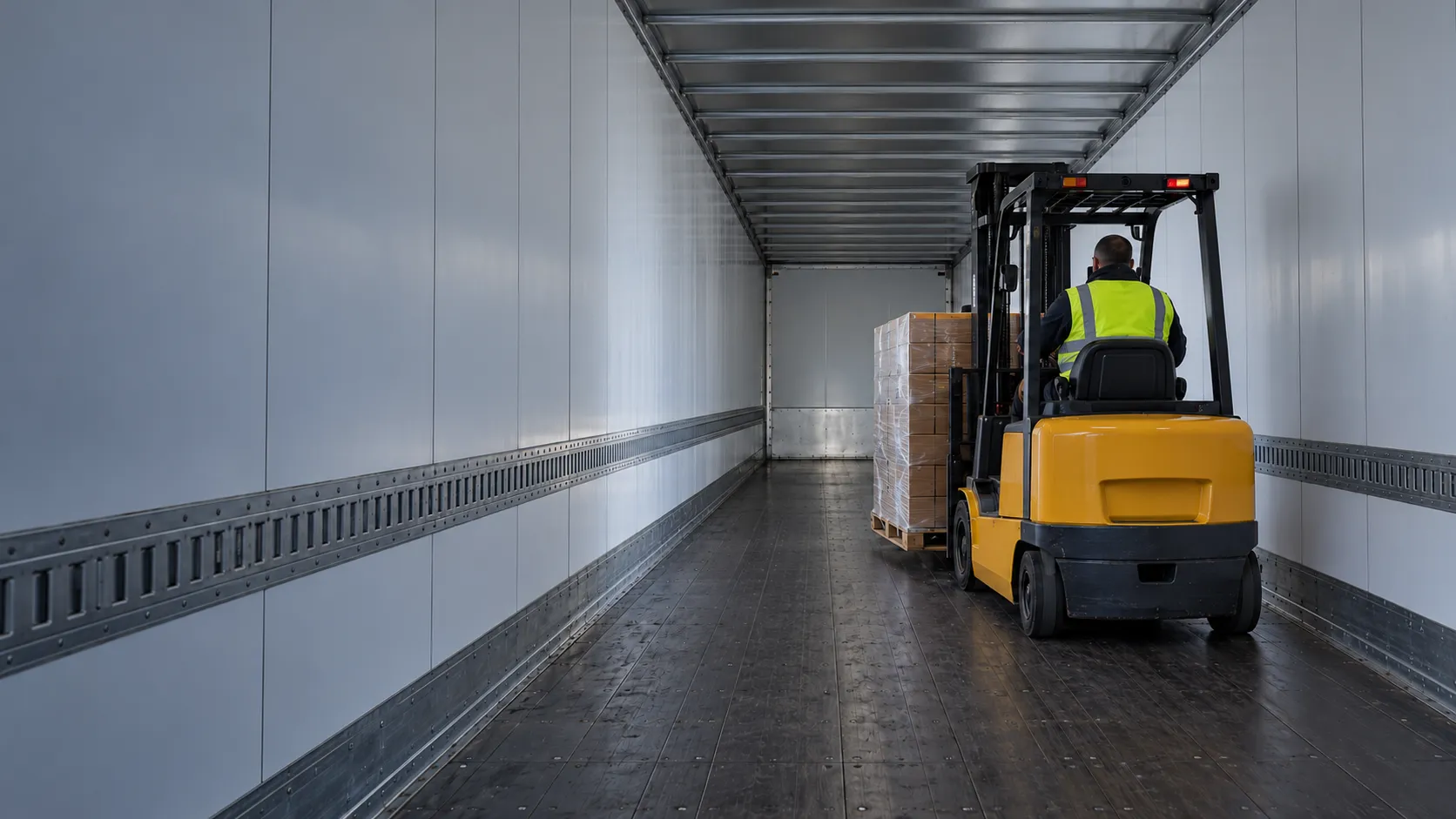

Dry freight trailer sidewalls, roll-up doors, swing doors, decking, truck bodies, cargo trailers and specialty transportation equipment.

Fabrication & assembly

Panels can be cut with suitable woodworking or metalworking tools and assembled using aluminum or steel extrusions. Tekmodo can help review cutting, fastening and joining requirements for your equipment.
Request SCM technical information→

ACM

Aluminum composite material

Lightweight panels
Smoother exterior

Our ACM panels combine pre-painted aluminum skins with an HDPE or proprietary core. Composite construction adds rigidity and helps reduce waviness and oil canning for a smoother finished exterior.

Key benefits

  • Lightweight composite construction
  • HDPE or proprietary core options
  • Added rigidity and reduced oil canning
  • Pre-painted finishes on both sides

Applications

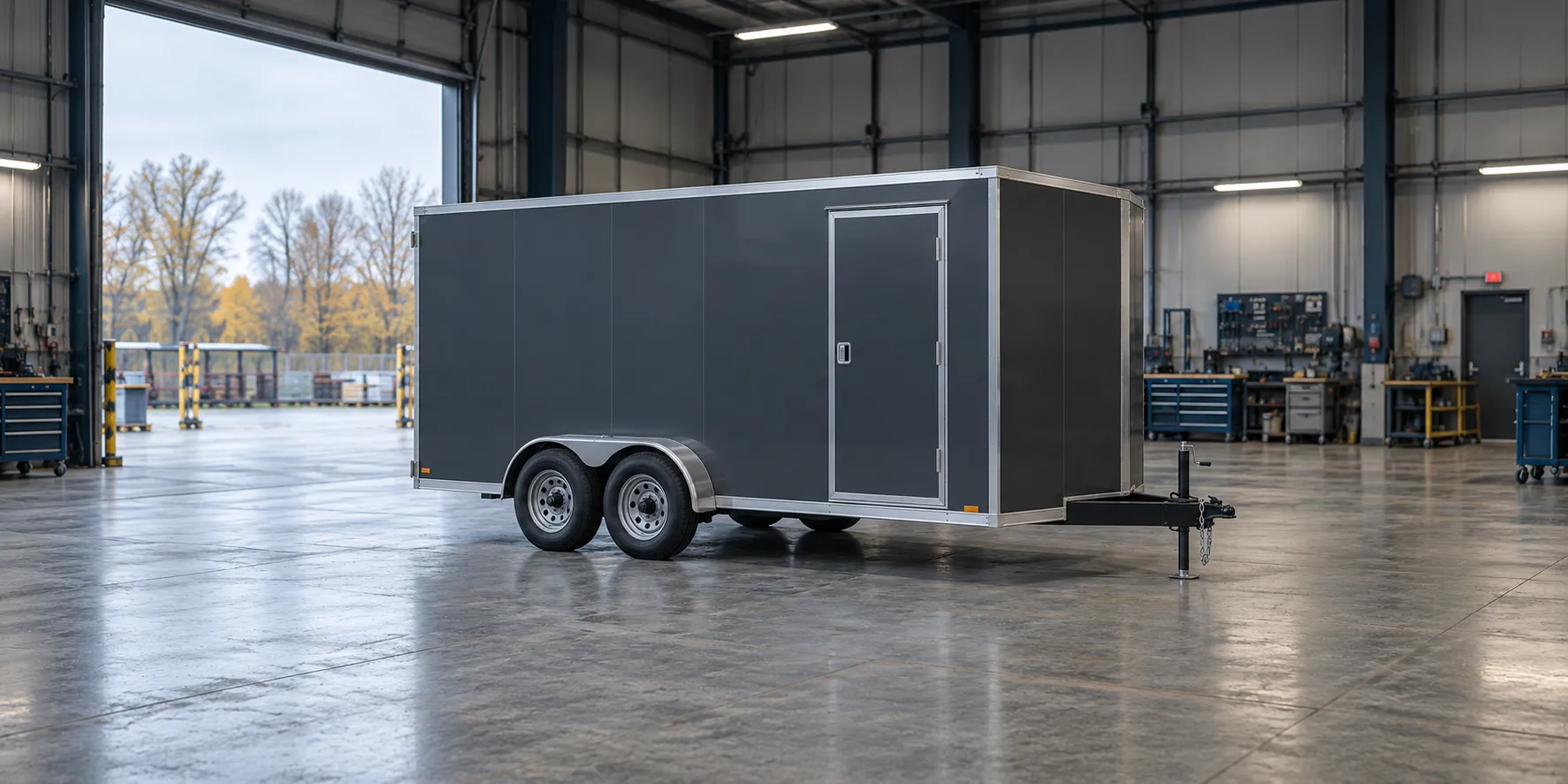

Cargo trailer sidewalls, specialty transportation equipment and industrial OEM products.

Fabrication & assembly

Tekmodo can help review cutting, fastening and joining requirements for your equipment.
Request ACM technical information→

Panel specifications

SCM & ACM specifications

SpecificationSCMACM
Outer skinsPre-painted, galvanized steelPre-painted aluminum
Core / product optionsHDPE or proprietary coreHDPE or proprietary core
Overall panel thickness0.098–0.472 in (2.5–12 mm)0.098–0.118 in (2.5–3 mm)
Width11.8–50 in (300–1,270 mm)48 in (1,219 mm)
Height / length108–126 in (2,750–3,200 mm)96 or 120 in (2,438 or 3,048 mm)
Standard sheet sizes48 × 108 in (1,219 × 2,743 mm)
48 × 126 in (1,219 × 3,200 mm)		48 × 96 in (1,219 × 2,438 mm)
48 × 120 in (1,219 × 3,048 mm)
Custom sizesOn requestOn request
Surface coatingPolyester baked-on coil coatingPolyester baked-on coil coating, both sides
Standard colors / finishPremium whiteWhite, black, silver and charcoal
Custom colorsOn request, subject to minimum order quantitiesOn request, subject to minimum order quantities

From specifications to production

OEM manufacturing support

Tekmodo combines extrusion, lamination, metal sheet processing and in-house testing to support OEM panel requirements.

Send us your drawings, current material specifications or production needs. Our team can review panel configuration, dimensions, finish, assembly methods and order volume.
