Extruded HDPE sheet

HDPE sheet for demanding applications

Solid, foamed and black regrind sheet for thermoforming, fabrication, liners and OEM components—extruded in Three Rivers, Michigan.
Get a quote →

Request a sample →

Up to 60 inches wide

0.098–0.472 inch

Factory direct · Michigan

Wider sheet

Up to 60 inches for fewer seams and better nesting, depending on your part layout

Factory direct

Quote with the manufacturer, without a distributor markup

Your regrind

Convert your material into sheet on our line

Midwest production

Three Rivers, Michigan · New PTi line, 5,000 lb/hr · Per-lot QC on density, melt flow and color

HDPE offerings

HDPE sheet offerings

Solid, foamed and black regrind sheet with dimensions, formulations and finishes configured by program.

Custom formulations

Solid HDPE sheet

Virgin, regrind and blended sheet for liners, fabricated parts and OEM components.

Sheet dimensions

  • LengthUp to 10 ft (3,048 mm); up to 11 ft on request
  • WidthUp to 60 in. (1,524 mm)
  • Thickness0.098–0.472 in. (2.5–12 mm)
  • Standard sizes48 × 96 in. and 48 × 120 in.; other sizes cut to order
Formulations and finishes
  • FormulationsVirgin, regrind or blended to a ratio
  • Recycled contentVaries by formulation; ask us for the figure on a specific grade
  • Color optionsSingle color; two-tone by program
HMW-HDPEHigh molecular weight polyethylene sheet available by program

Lightweight sheet

Foamed HDPE sheet

Foamed-core sheet for lower weight at the same thickness, configured to your part’s mechanical requirements.

Sheet dimensions

  • LengthUp to 10 ft (3,048 mm); up to 11 ft on request
  • WidthUp to 60 in. (1,524 mm)
  • Thickness0.118–0.472 in. (3–12 mm)
Formulations and finishes
  • Surface optionsSmooth, hair cell, pebble and other grains
  • Color optionsSingle color

High-volume economics

Black regrind HDPE

Smooth, reprocessed black HDPE sheet for cost-driven programs and parts that see impact, grease, oil and repeated handling.

Sheet dimensions

  • LengthUp to 10 ft (3,048 mm); up to 11 ft on request
  • WidthUp to 60 in. (1,524 mm)
  • Thickness0.098–0.472 in. (2.5–12 mm)
  • Standard sizes48 × 96 in. and 48 × 120 in.; other sizes cut to order
Formulations and finishes
  • MaterialBlack regrind HDPE
  • SurfaceSmooth
  • Process fitHeavy-gauge vacuum forming and thermoforming
  • Truckload quantityApproximately 44,000 lb (about 625 sheets at 0.440 in.)
Dimensions, formulations and finishes vary by program. Confirm the specification for your selected sheet with our team.

Markets and applications

HDPE sheet for your market

Sheet formulations, dimensions and finishing configured around your application and production requirements.

Agriculture

Sheet for agricultural equipment and fabricated components.
  • Equipment partsGuards, housings and other formed equipment components.

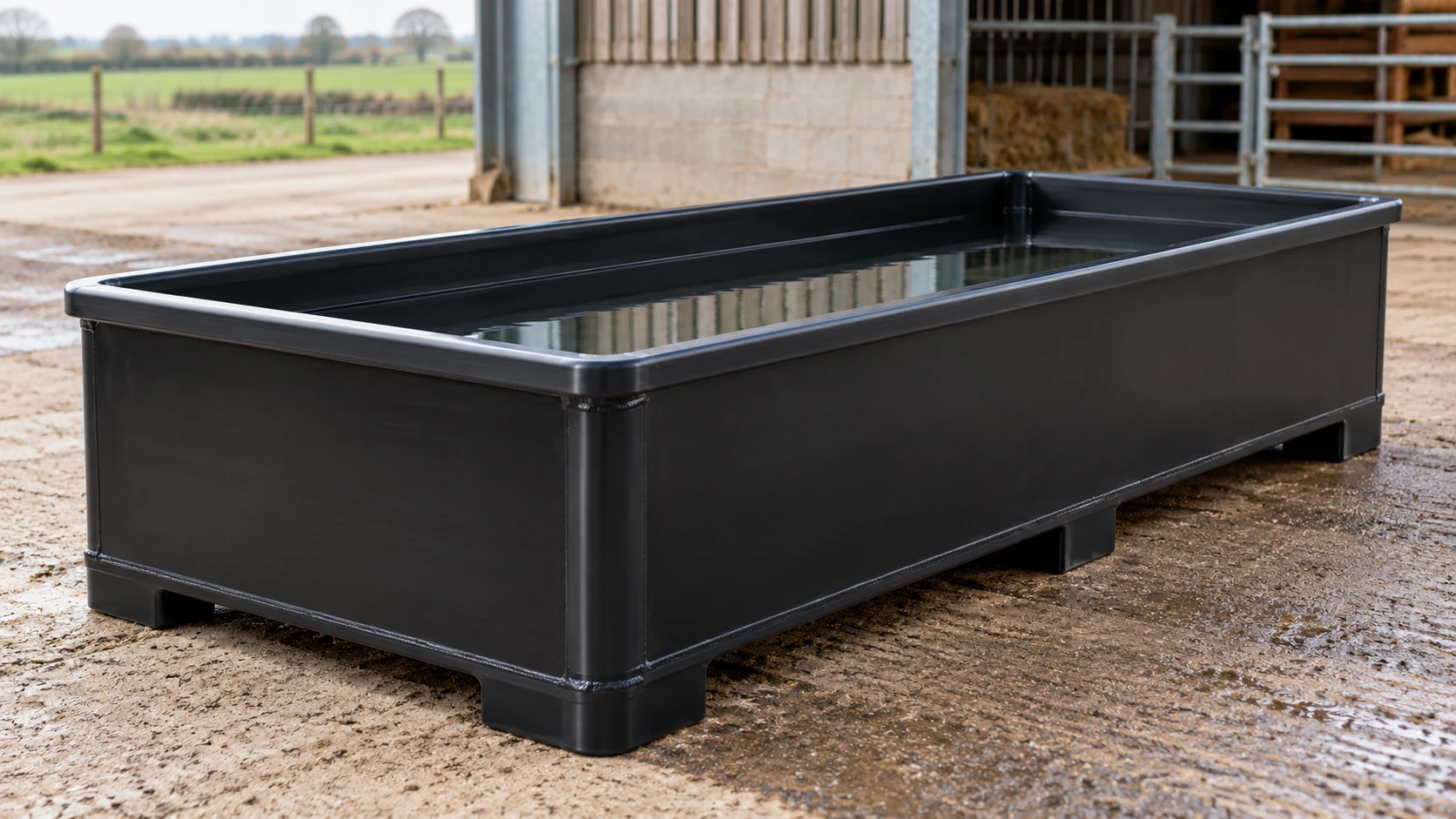

  • Farm applicationsTroughs, storage components and irrigation structures.
  • Program reviewMatch dimensions, formulation and finish to the part and operating conditions.

Transportation

Sheet for vehicle components, liners and reusable transport packaging.

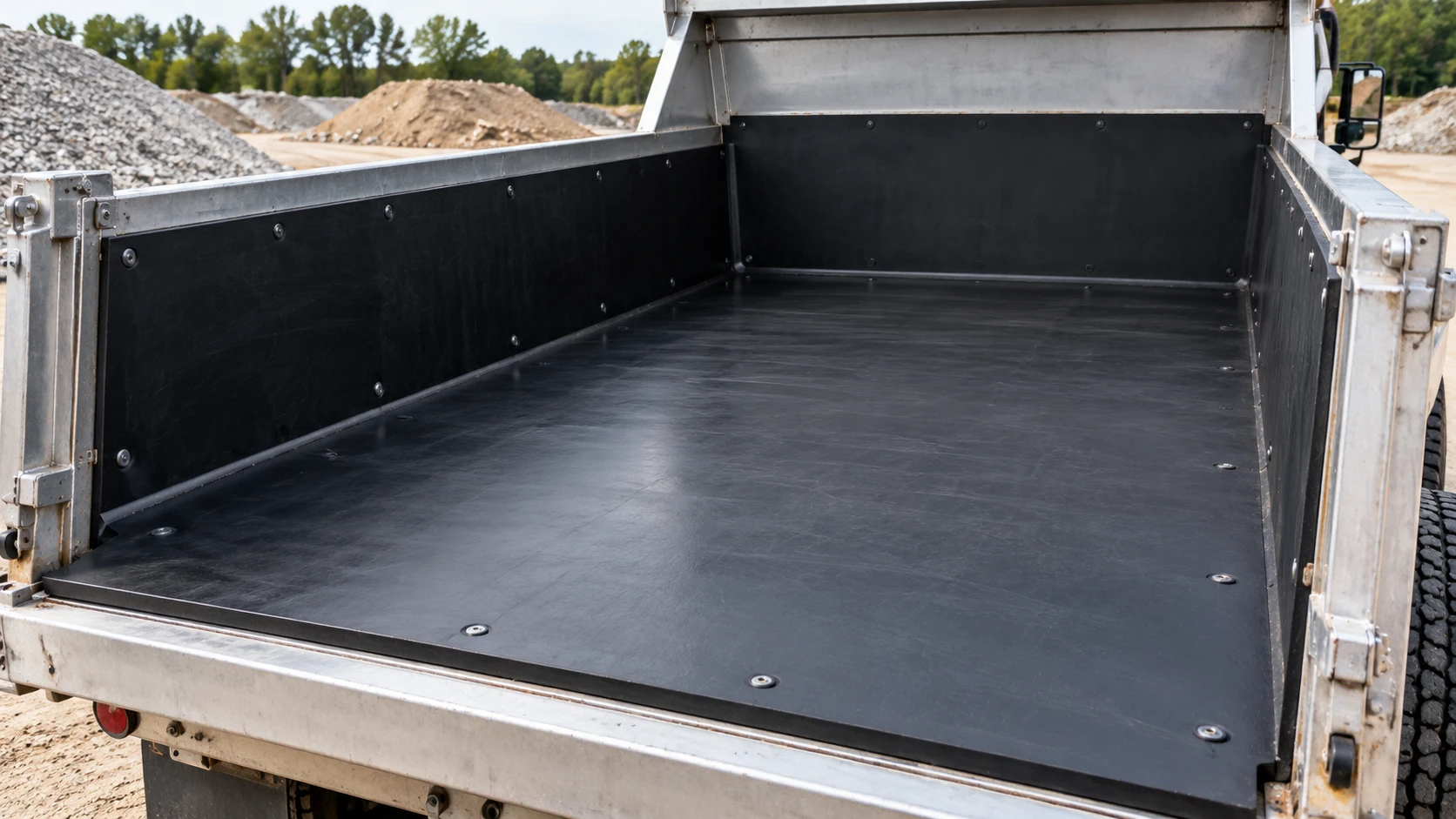

  • Truck and rail linersTruck-bed, hopper and specialty rail-equipment liner applications.
  • Formed componentsWheel guards, fenders and other thermoformed parts.

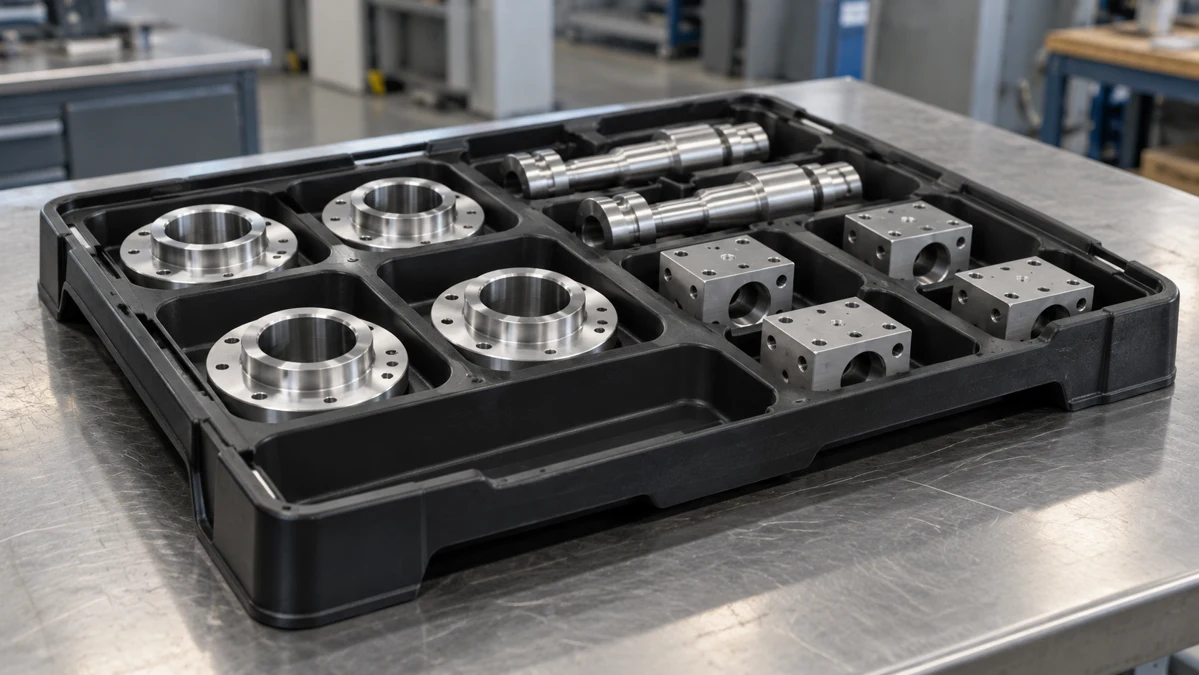

  • Returnable packagingDunnage trays, containers, shipping pallets and top caps.

Industrial

Sheet for thermoforming, fabrication and production programs.
  • Equipment componentsPanels, housings, bins and fabricated parts.
  • ThermoformingHeavy-gauge sheet reviewed to your forming process and finished-part specification.
  • Cut-to-size and CNCFinished dimensions and routed features reviewed from your drawing.

Infrastructure & Utilities

Plastic spacer panels for conduit and utility installations.

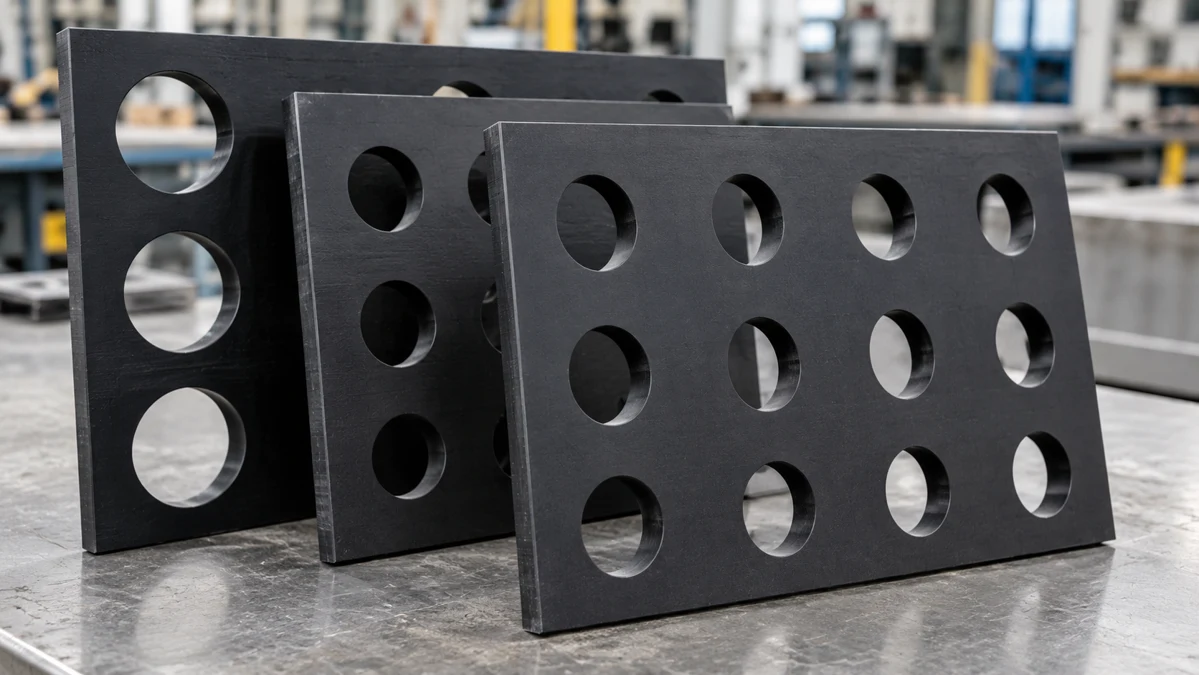

  • Duct bank spacersPanels in 3/8-inch and 1/2-inch gauges.
  • Panel configurationReview dimensions, openings and quantities for your layout.
  • Drawing reviewSend a DXF or PDF to discuss cut-to-size and CNC requirements.
Illustrative application imagery

Supply programs

Buy sheet your way

Truckload & stock inquiries

Black HDPE sheet in 4 × 8 ft format, including 0.440-inch gauge. Approximately 44,000 lb truckloads. Ask for current stock and ship dates.

Committed-volume pricing

Preferred pricing for 12-month volume agreements, quoted around your annual usage and release schedule.

HDPE toll extrusion

Convert your own regrind into finished sheet on our line, with incoming material and specifications reviewed for your program.

Finishing and secondary services

Cut-to-size sheet · CNC routing · Regrind and pelletizing
Send your DXF or PDF drawing for a part review.

Buyer questions

HDPE sheet FAQs

Orders, lead times, specifications and shipping—answers to help you plan your next sheet program.

Minimum order is quoted by formulation, dimensions and production program. Share your requirements and annual volume for an order review.

Color options are reviewed by program. Two-tone constructions are evaluated by program rather than offered as standard stock.

Recycled-content formulations and supporting documentation are reviewed by program. Specify your recycled-content and certification requirements with your inquiry.

Cut-to-size and CNC routing are available for review. Send a DXF or PDF drawing with finished dimensions and quantities.

Ask for current stock and ship dates, including 0.440-inch × 48-inch × 96-inch black sheet. Availability and production scheduling are confirmed with your quote.

Send your gauge, flatness and dimensional tolerances. The team will review them and agree on a specification for sampling and production.

Yes. Toll extrusion converts customer-supplied regrind into sheet after a review of incoming material, dimensions and production volume.

Provide your delivery location, order quantity and delivery requirements. Freight and shipping arrangements are reviewed with the order.

Start your HDPE program

Send us the part, process and volume

Start with your specification. We’ll review the right sheet and supply program for your application.

01 · Send your spec

Grade, gauge, dimensions and flatness requirements

02 · Trial our sheet

Review samples and run them in your process

03 · Confirm your program

Agree on the specification before production

Request a quote or sample

Choose quote or sample, tell us the sheet type, thickness, width and quantity, and attach a drawing if you have one.

We respond to quote and sample inquiries within one business day.
Prefer to talk? Kevin Rudolph, VP of Sales · 574-970-7100 · krudolph@tekmodo.com
