Translucent composite roofing
Composite roofing designed for puncture, abrasion and impact resistance—with controlled natural light inside the cargo area.
≥ 5 J
Impact · no cracking · 44 in-lb
≥ 240 MPa
Flexural strength · 34.8 ksi
Roof performance
CargoBright™ is the new brand name for Tekmodo’s proven translucent roof panels. For years, Tekmodo has supplied translucent roof coils and panels to leading transportation manufacturers, in flexible and rigid constructions and a range of thicknesses.
CargoBright™ combines the visibility of a translucent roof with the durability required for transportation applications.
Its composite construction is designed to stand up to puncture, abrasion and impact while resisting moisture and UV exposure. Controlled light transmission remains an advantage—not the only reason to specify it.
01
Reinforced composite construction designed to resist concentrated loads and everyday roof hazards.
02
A smooth, durable exterior surface designed for handling, installation and service exposure.
03
Falling Dart / Gardner testing shows no cracking at impact energy of 5 J or greater.
Backed by Tekmodo · 6-year limited warranty
CargoBright™ translucent roofing is backed by a six-year limited warranty from the date of original installation, covering material defects that cause delamination or cracking and color shift beyond the specified limit.
For the original retail purchaser; non-transferable. Material remedies only. Labor, shipping and transportation costs are excluded. Coverage is subject to the full warranty’s terms, exclusions and claim requirements.
CargoBright™ · 6-year limited warranty
Enter your email to read the warranty
01
Coverage for separation caused by defects in the roof material.
02
Coverage for cracking caused by material defects under normal use and service.
03
Coverage for exterior color shift exceeding ΔE00 3.0, measured under the warranty’s specified method.
Measured performance
Published test results supporting structural performance, adhesion and long-term outdoor use.
≥ 5 J
Falling Dart / Gardner Impact · No cracking at 5 J (44 in-lb) or greater.
≥ 240
Three-point bend testing in accordance with ASTM D790.
≥ 17
Designed for roof span loading and dynamic vehicle vibration.
5B
ASTM D3359 crosshatch adhesion with 0% typical coating removal.
< 0.5%
Tested in accordance with ASTM D570.
1,000
No significant yellowing after accelerated UV exposure.
55–75%
ASTM D1003 total luminous transmittance for controlled natural daylight.
70–90%
ASTM D1003 diffusion designed to minimize glare and concentrated hot spots.
Applications
Developed for integration into commercial and specialty transportation roof systems.

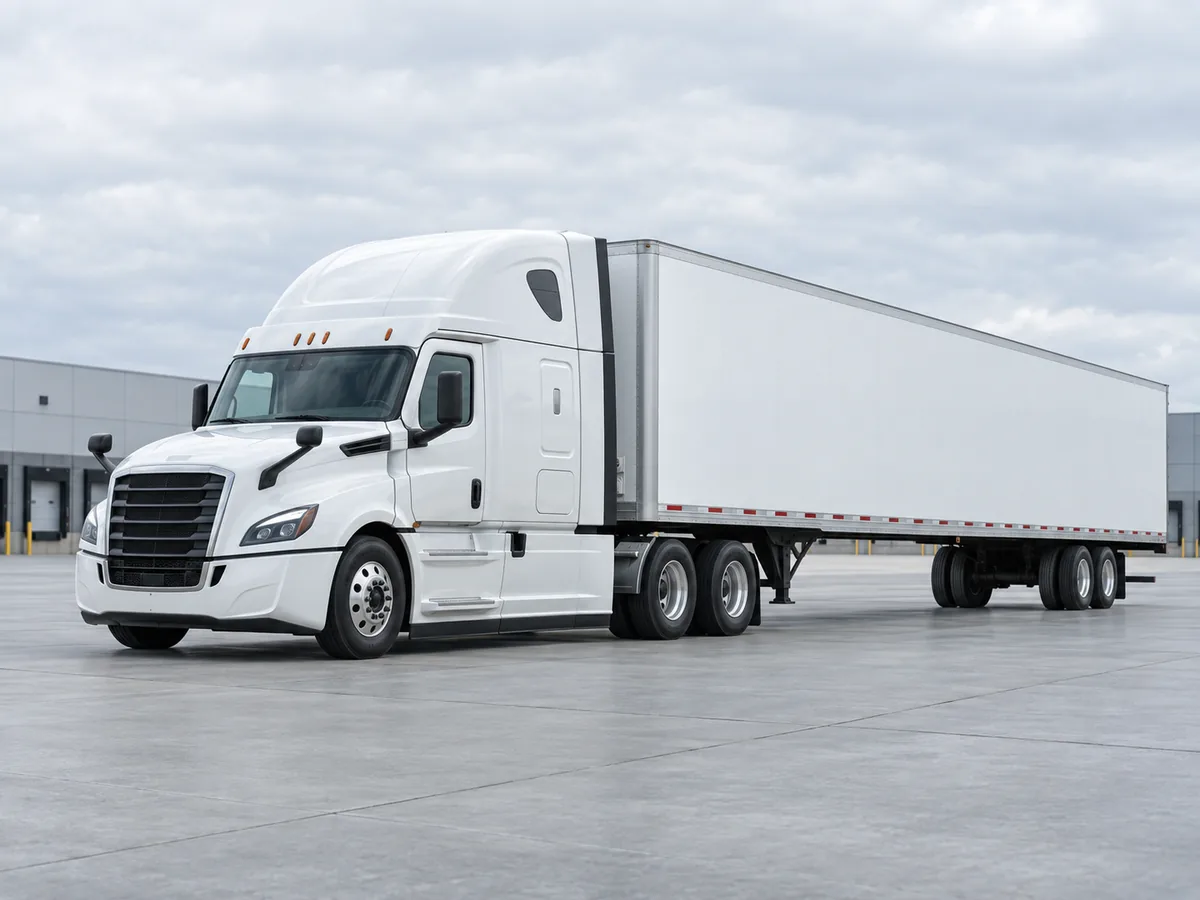

Daylight across large cargo interiors for loading and daytime operation.

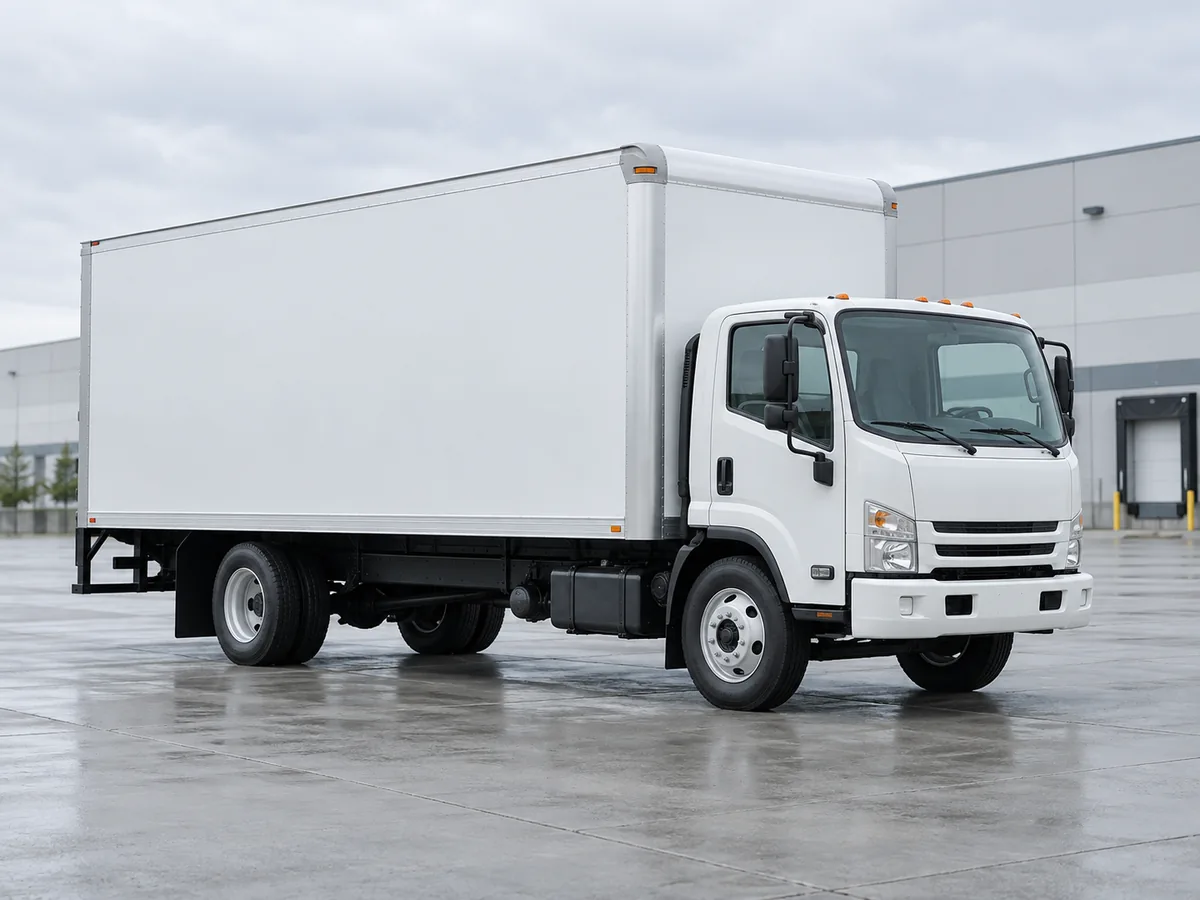

Diffused natural light for delivery, service and vocational body applications.

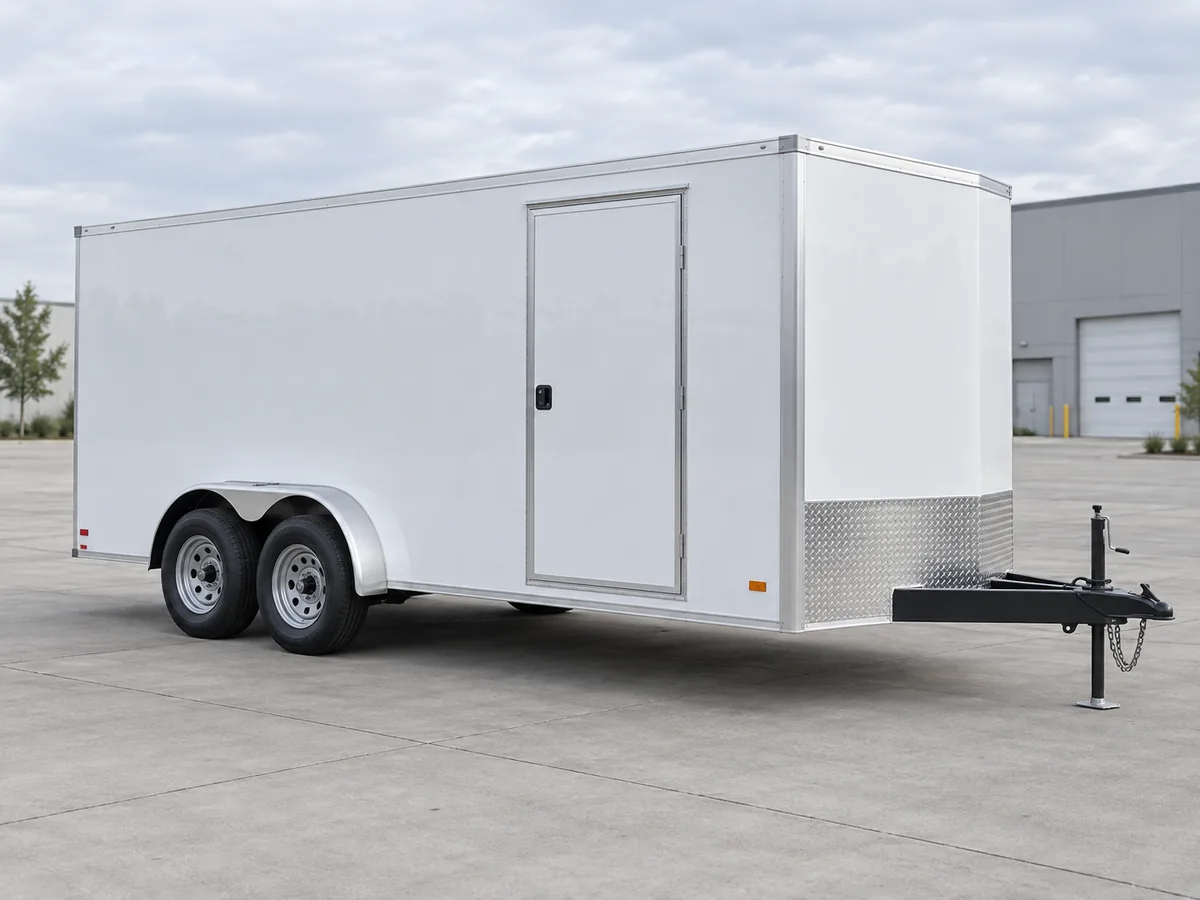

A brighter interior for utility, powersports and specialty towable trailers.
OEM integration
CargoBright™ is supplied in production-scale roll formats and configured around the vehicle structure, bonding system and manufacturing process.
Standard roll Widths
1,200–2,800 mm | 47.2-110.2 in
Standard Roll lengths
91.4-304.8 m | 300–1,000 ft
Nominal Thickness
1.8–3.5 mm | 0.071-0.138 in
Weight per unit area
1.8–3.5 kg/m² | 0.37-0.72 lb/ft²
✓
OEM-approved bonding systems
✓
Custom reinforcement options
Start a conversation
Request a material sample, technical data or an application review for your trailer or truck-body platform.
