Product catalog

Thermoplastic composite panels & laminates

Tekmodo manufactures fiber-reinforced thermoplastic materials in flat panels, cut sheets and continuous coils. Our product range includes cross-ply panels, fiberglass laminates, nonwoven composites and specialty surface materials.
Request product information →

Explore products ↓

Materials & layers

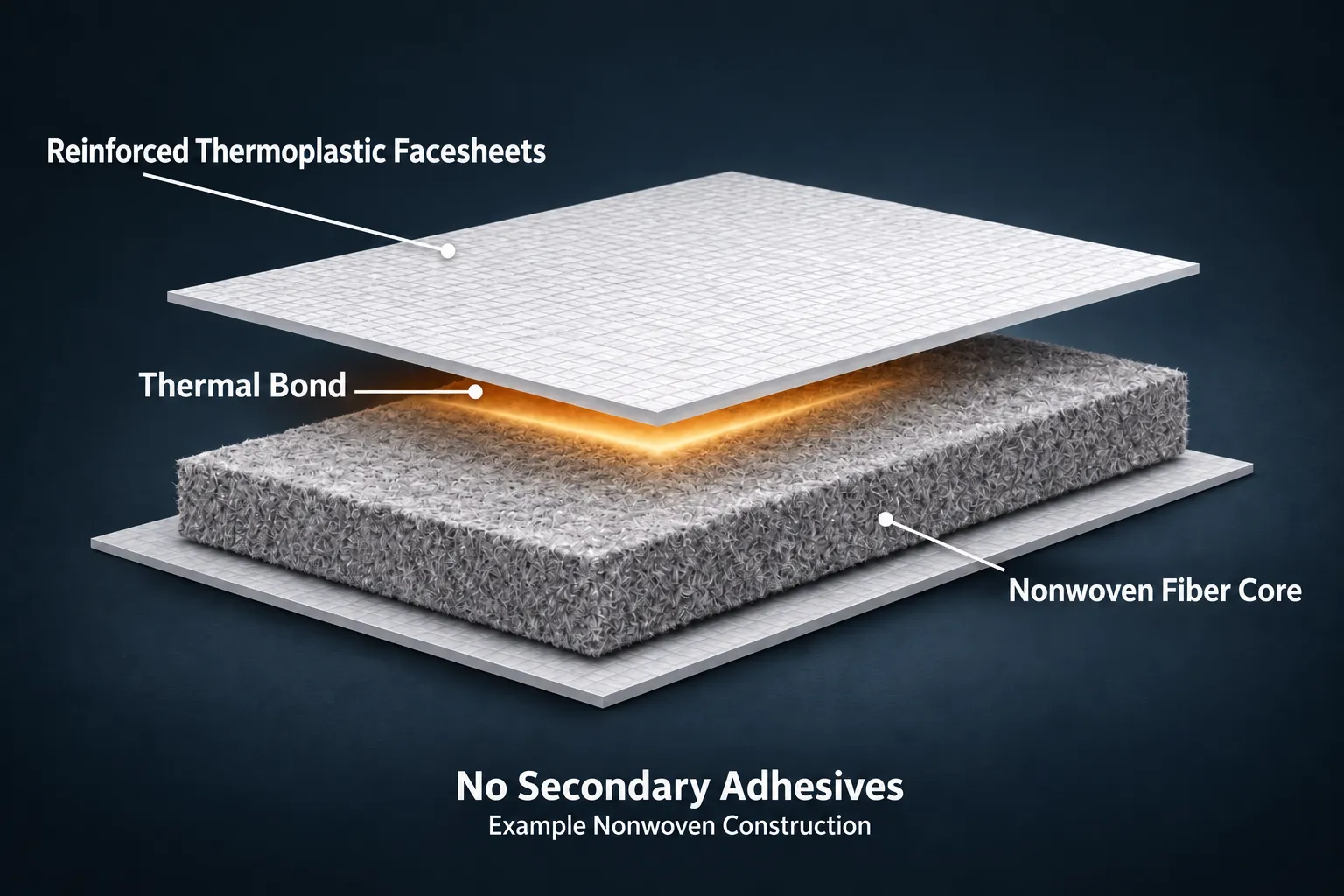

Composite construction

Our panel technology combines reinforced thermoplastic facesheets with core options that include thermoplastic foam, honeycomb and nonwoven fiber. Thermal bonding joins the layers without secondary adhesives.

Fiber orientation, layer count, core and finish vary by product family and application.

Core and layer options vary by product

Product families

Explore our products

01Flat panels

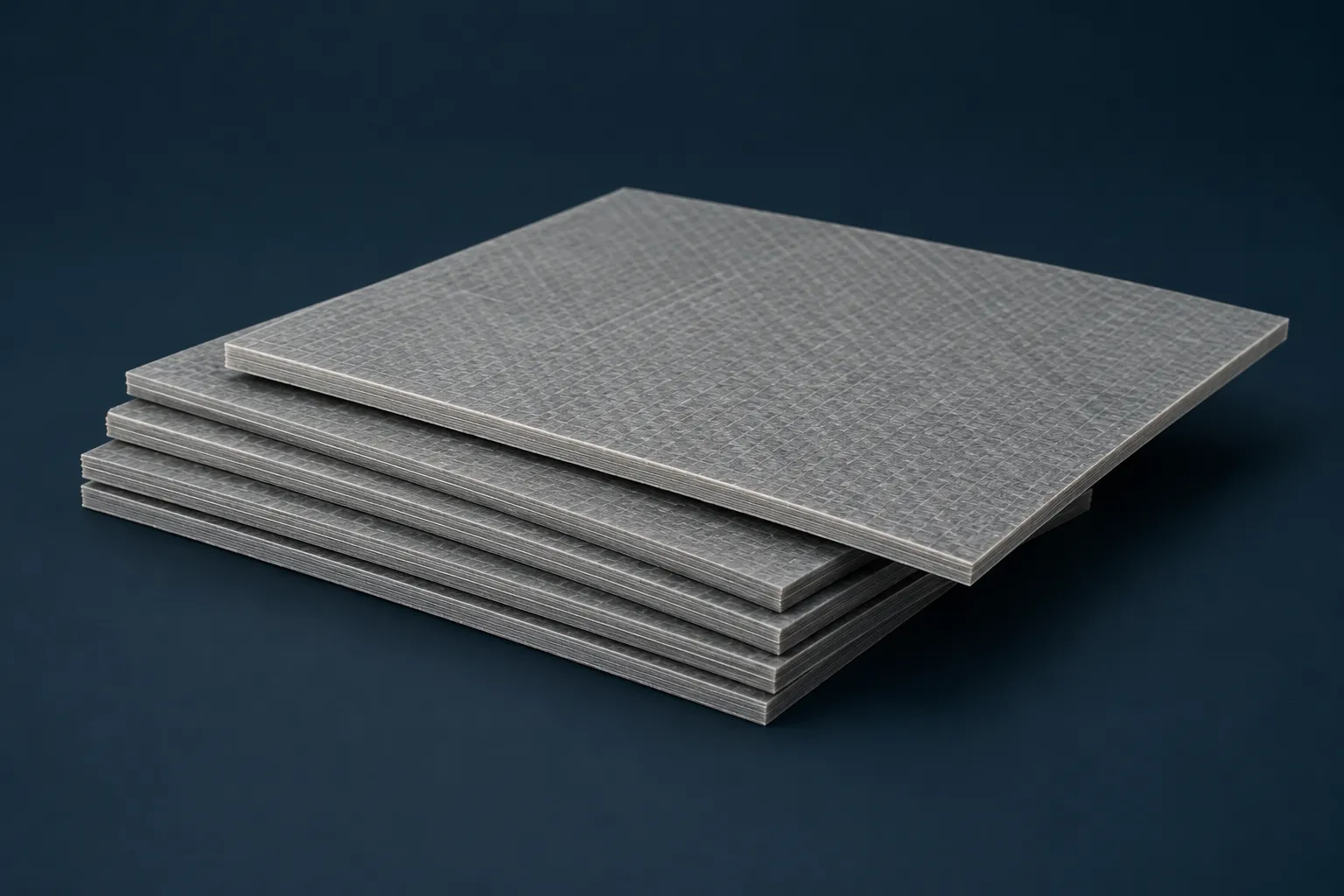

FX Series composite panels

Flat composite panels available in FX8, FX10 and FX22 constructions. FX8 uses fiberglass reinforcement arranged in a 0°/90° cross-ply structure to provide strength in both directions.

Available configurations

  • Flat panels in multiple dimensions
  • Film and scrim options
  • One- or two-sided bonding configurations on select products
  • Specialty variants with a black anti-slip surface

Typical applications

Floor panels, roof decks and structural components

Request FX product details →

02Coils & cut panels

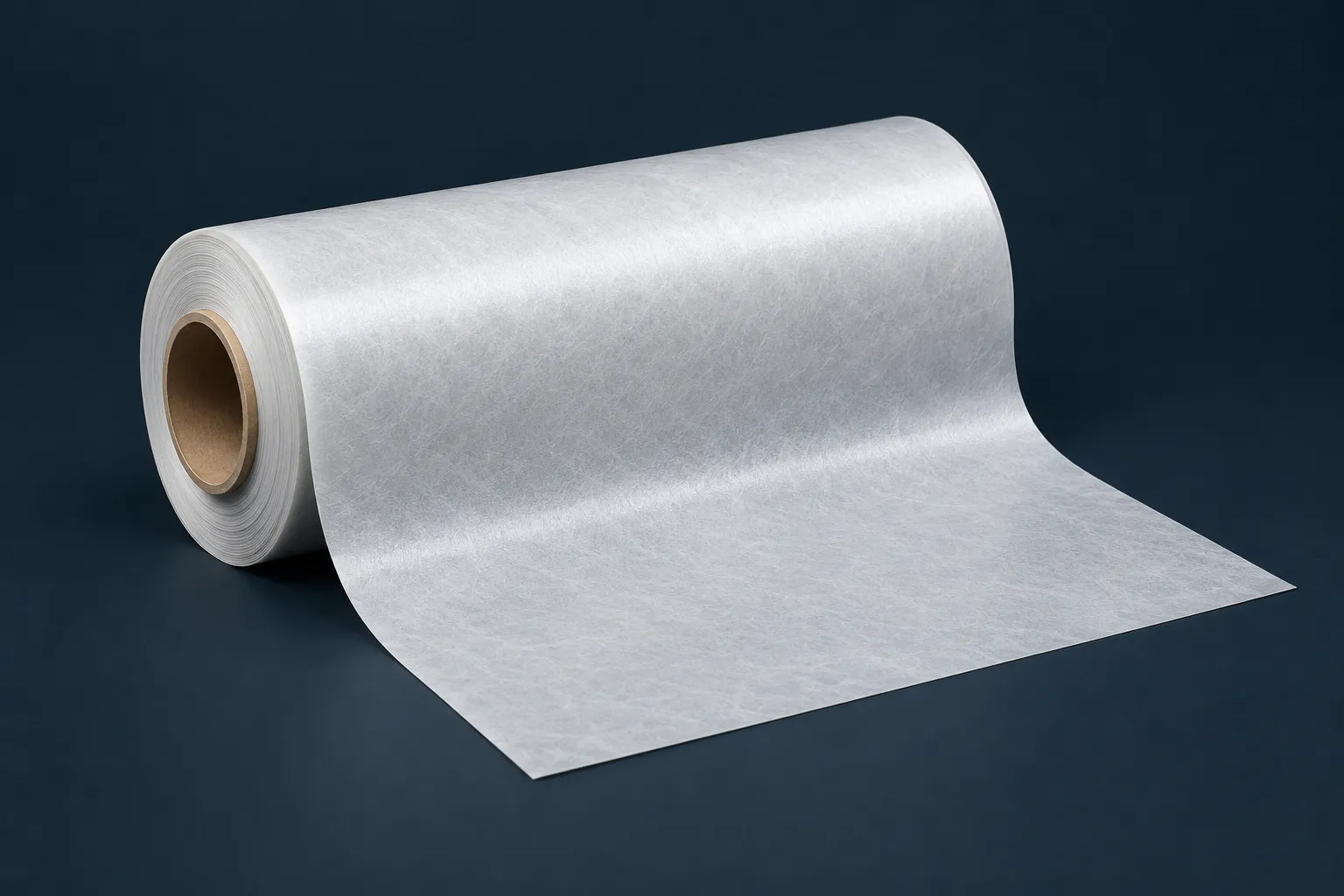

Fortis composite laminates

Fiberglass and thermoplastic film laminates supplied in continuous coils or cut panels. Fortis offers multiple material weights and bonding-face configurations for use within larger assemblies.

Available configurations

  • Material weights including 800, 1,000 and 1,200 g/m²
  • Coil and cut-panel formats
  • Listed coil configurations in 500-foot lengths
  • One- or two-sided bonding options, with film and scrim configurations

Typical applications

Roof and wall assemblies, interior panels and formed components

Request Fortis product details →

03Continuous rolls

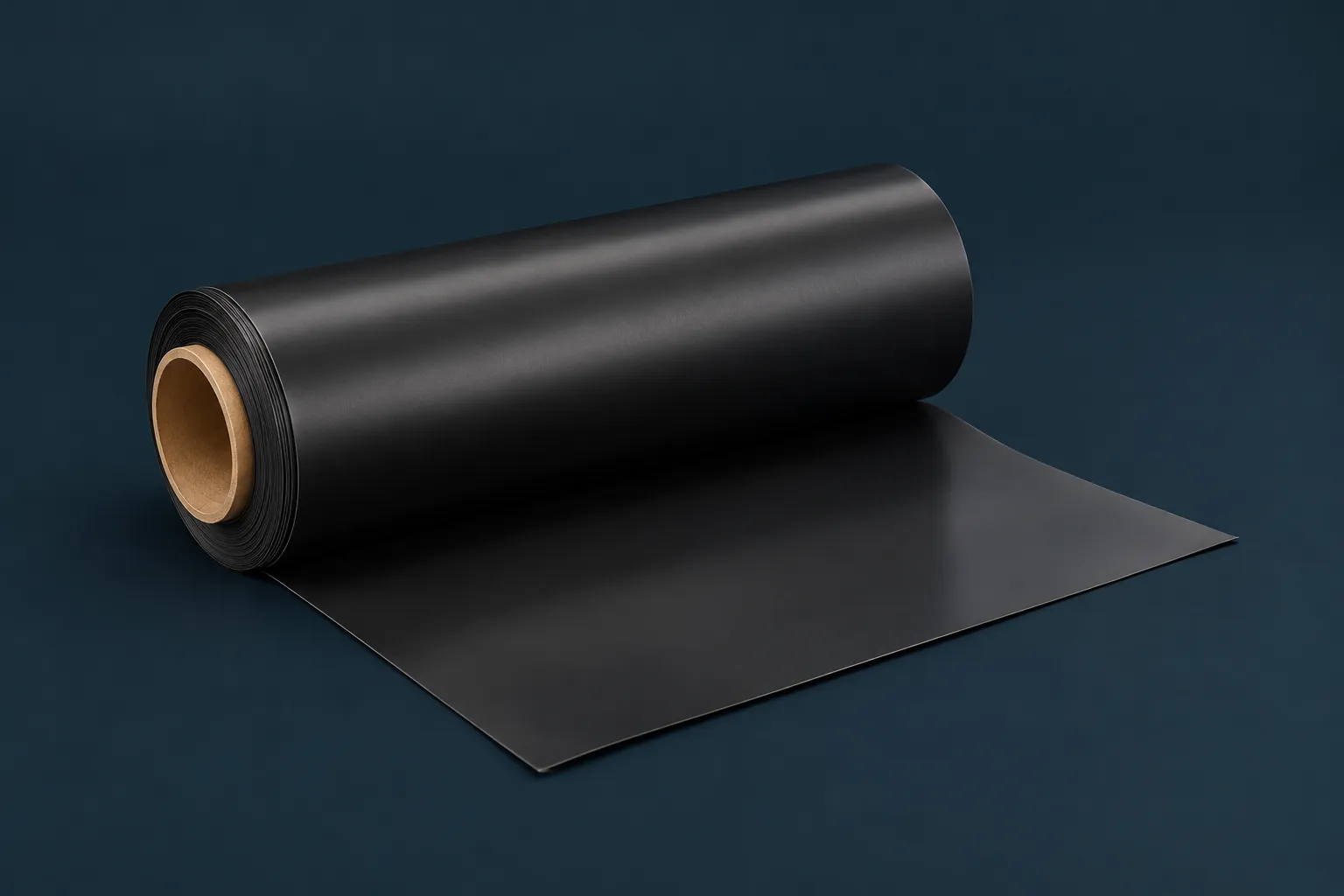

TX3 composite coil

Multilayer thermoplastic composite laminates supplied in continuous rolls. TX3 configurations vary in material weight, width and surface, allowing manufacturers to specify material for continuous application.

Available configurations

  • Listed material weights including 480, 680, 800 and 960 g/m²
  • Listed widths up to 102 inches
  • Select roll configurations in 850-foot lengths
  • Black, clear-film and white-film variants

Typical applications

Underbody coverings, floor assemblies and transportation components

Request TX3 product details →

04Formable materials & panels

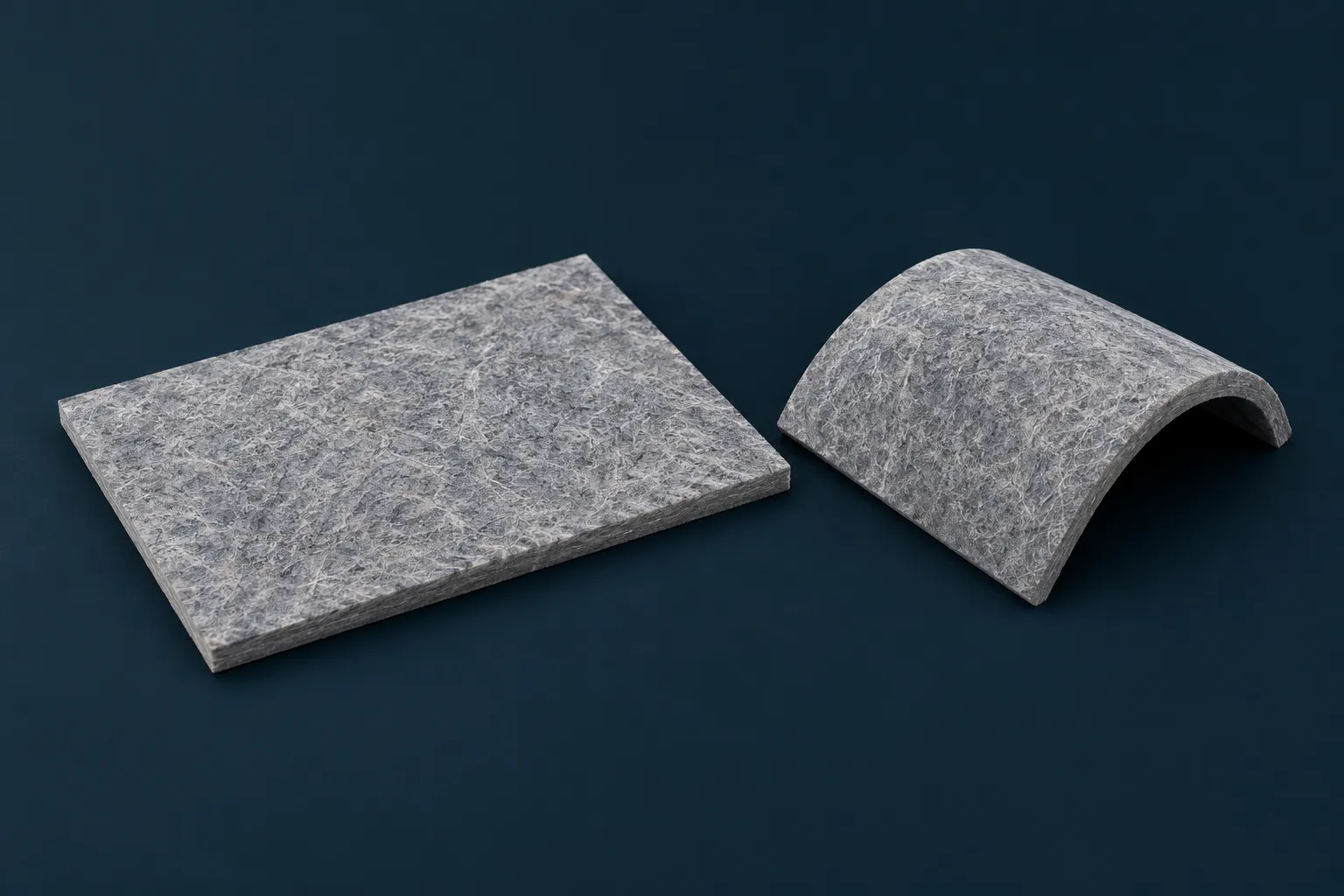

BICO / nonwoven composites

Composite materials incorporating bi-component fiber technology. The range includes materials for tight-radius forming and a 9 mm flat-panel configuration.

Available configurations

  • Materials for bends and shaped components
  • A 9 mm panel listed in an 8-foot × 20-foot format
  • Product-specific dimensions and surfaces

Typical applications

Formed interior components, panels and decking

Request BICO product details →

Surface & finish

Specialty materials & surface options

White & reflective roofing

Roofing materials available in white-film, white-UV and Solar Guard variants

Decorative film laminates

Composite materials with decorative vinyl-film surfaces

Anti-slip panels

Composite panels with a black grip surface

Scuff liners

Composite liner panels, including a 4 mm configuration

CargoBright™ translucent roofing

Translucent composite roofing available in coil and sheet configurations

Technical information, samples & quotes

Send us your application, required dimensions and preferred surface or bonding configuration. We can help identify a product and provide available technical data, samples and pricing.
